• Stock lengths 14’ – 26’
• Widths available: 96” or 102” with 50”, 62”, or 74” wall height
• 4” aluminum channel cross members (96” wide) 16” standard crossmember spacing
• 4” aluminum I-beam crossmembers (102” wide) 16” standard crossmember spacing
• 14’, 16’ and 18’ lengths with 7” steel channel long sills
• 20’ – 26’ with 8” steel channel long sills
• 1 ¼” aluminum extruded floor with 6.85” extruded aluminum front and side rails
• .125 smooth aluminum with 2 ½” x 3” x ¼” tube-frame sides and front, smooth interior
• Rear extruded corner posts extend through platform for additional strength

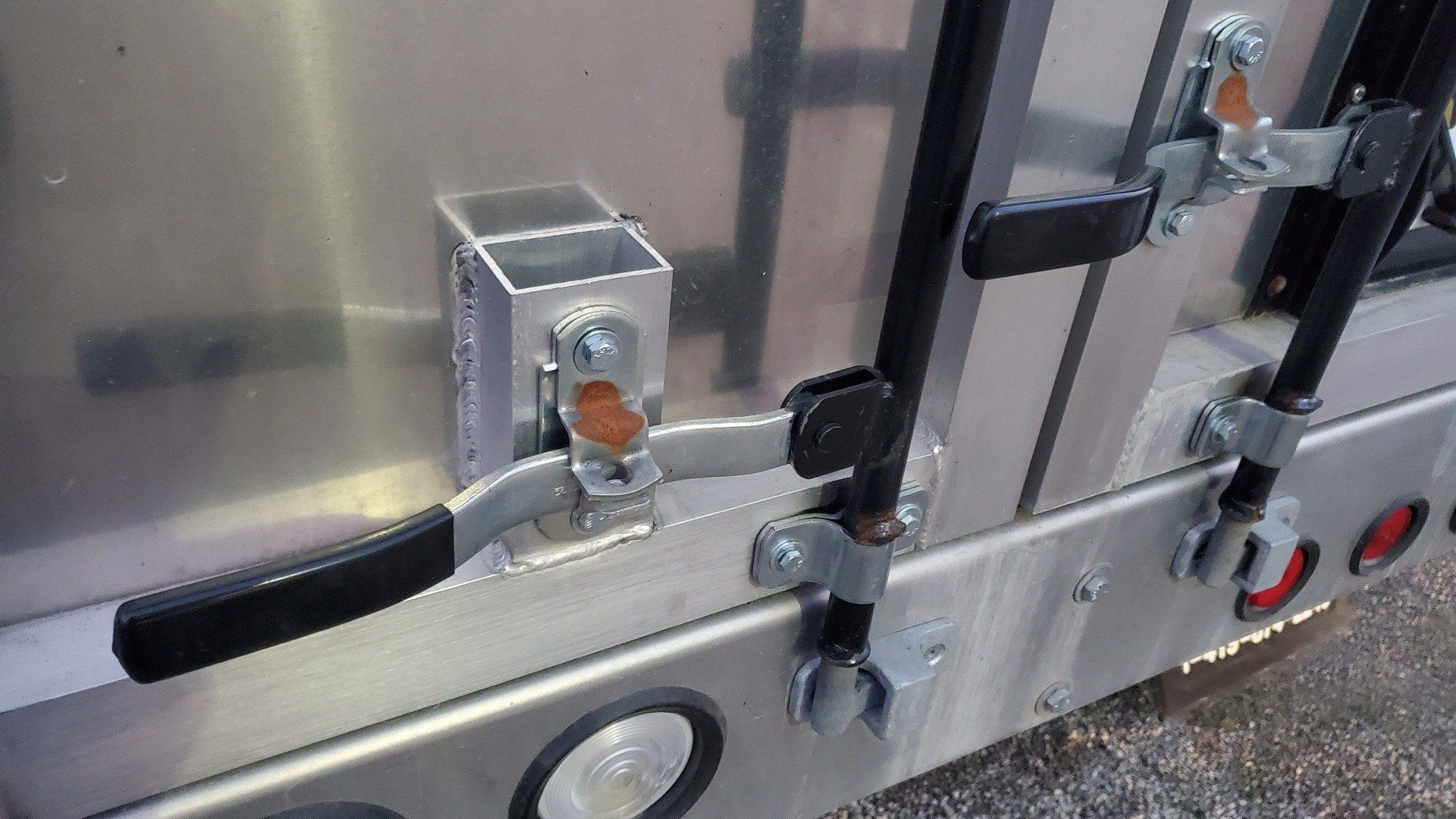

• Triple freight gate with flush opening center grain trap and cam closures
• Recessed rear rail and close cell urethane gaskets for leak resistant gate assembly

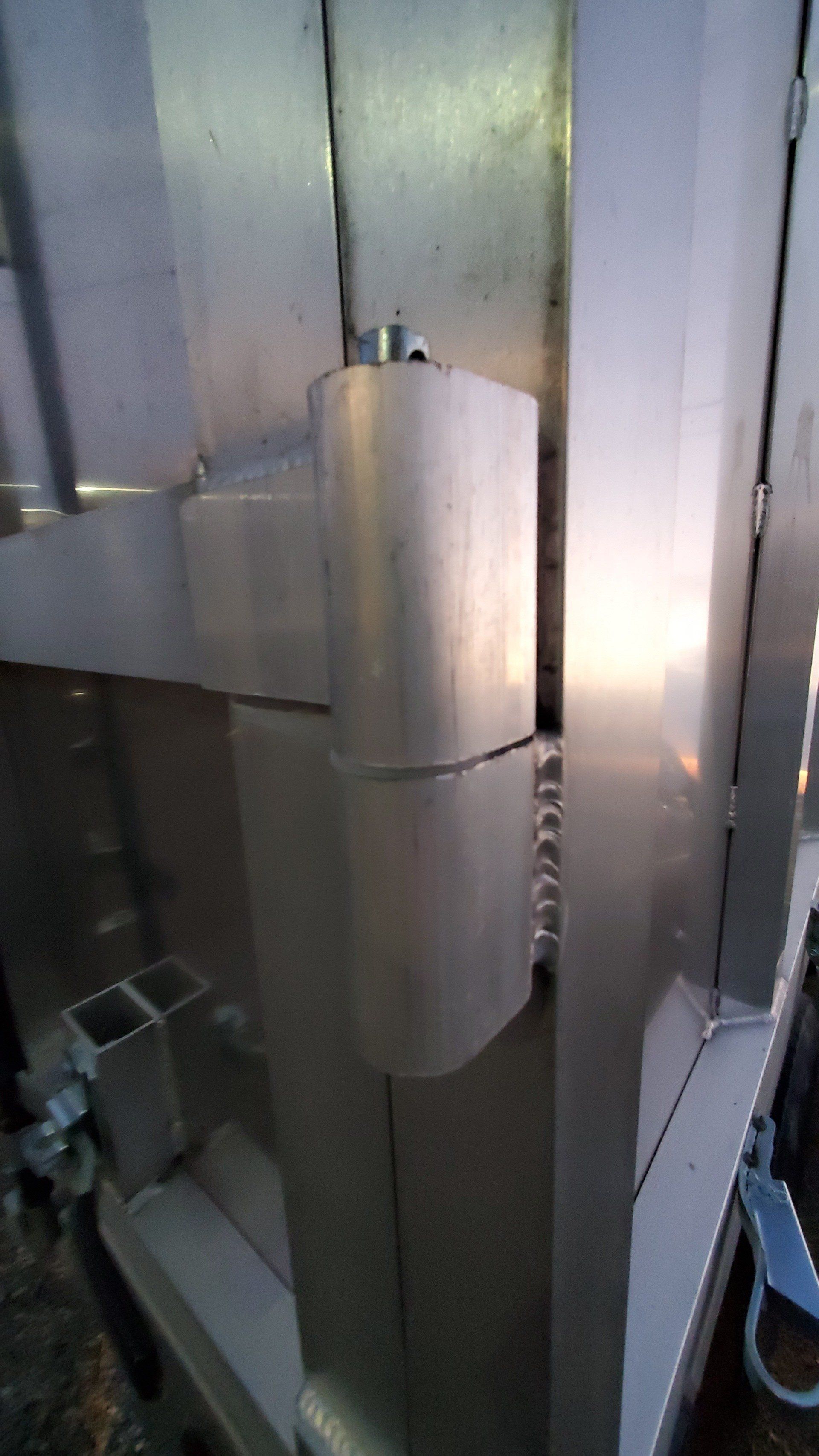

• Hinge design allows for easy removal of gates and header bar
• Lighting and marking to FMVSS #108 Standards
• LED stop, tail, turn, and body marker lights and incandescent back-up lights.

Options:

• Scott level-lift hoist package
• Optional Ensilage/Bulk Material Body: the same specifications as above, with addition of high lift gate and (2) 2 ½” diameter hydraulic lift cylinders with 30” stroke – Options include hydraulic end gate lock, and additional crossmembers, additional grain traps, and 17” mesh extensions available upon request.
