• Stock lengths 12’- 24’
• Available width: 96” with 50” or 62” wall height
• (12’) steel formed crossmembers, 6” channel long sills, 12” ccm
• (14’ – 18’) steel formed crossmembers, 7” channel long sills, 12” ccm
• (19’ – 24’) steel formed crossmembers, 8” channel long sills, 12” ccm
•          *crossmembers selected per floor specifications
• 10-gauge smooth steel floor, T&G Douglas fir floor, 1 ¼” extruded aluminum, or 1/8” tread plate
• 14-gauge corrugated steel sides and front
• 10-gauge top rail and 3/16” rear corner posts

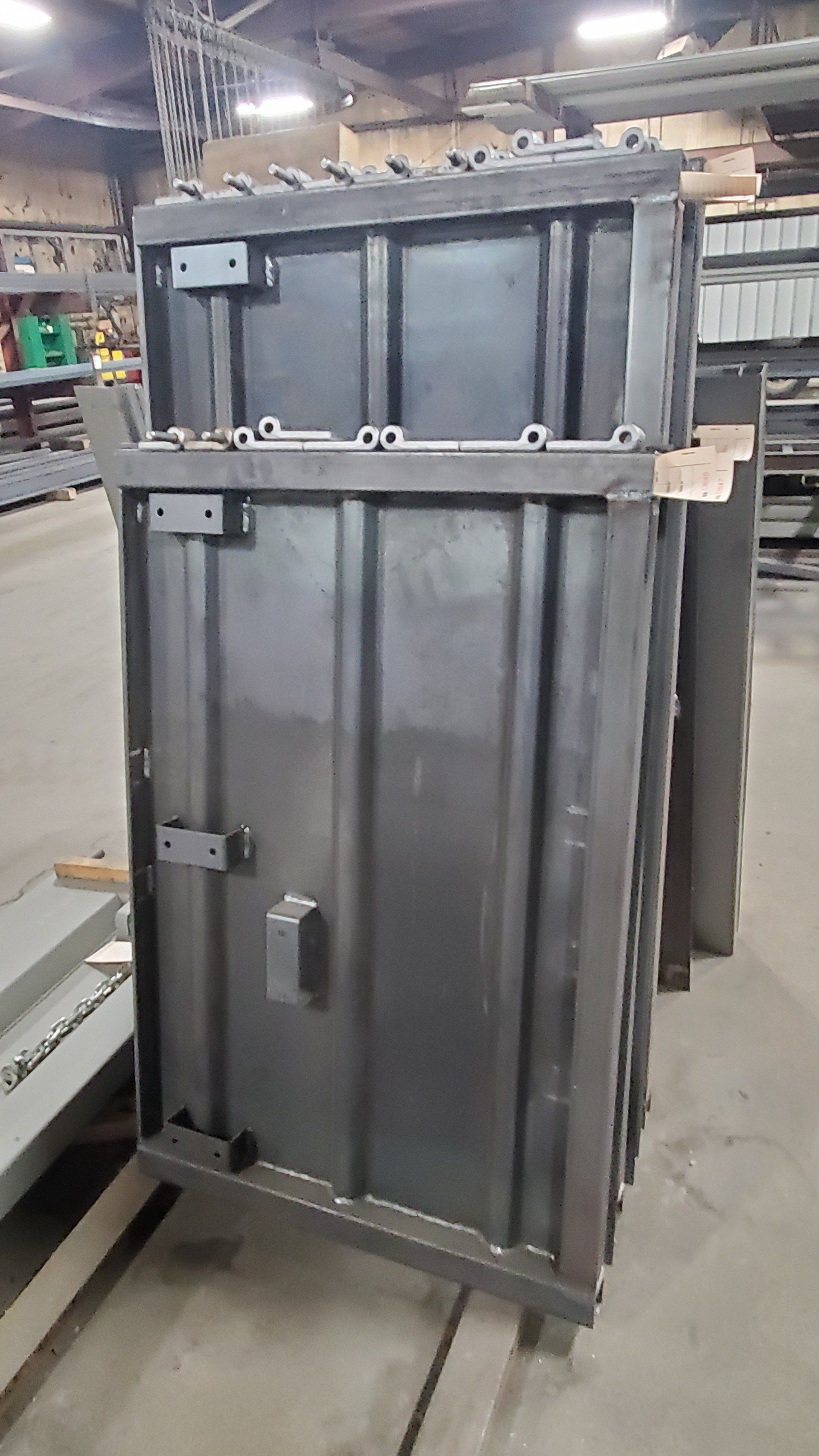

• Triple freight gate with flush opening center grain trap and cam closures
• Stepped rear rail and close cell urethane gaskets for leak resistant gate assembly
• Hinge design allows for easy removal of gates and (double-hinged) header bar
• Lighting and marking to FMVSS #108 Standards
• LED body marker lights

Options:

• Scott level-lift hoist package
• 2-piece wing end-gate with center grain trap in each wing
• 10” or 18” side solid extensions
• LED stop, tail, turn, and incandescent back-up lights package
• Assembled before shipping / painted gloss black
