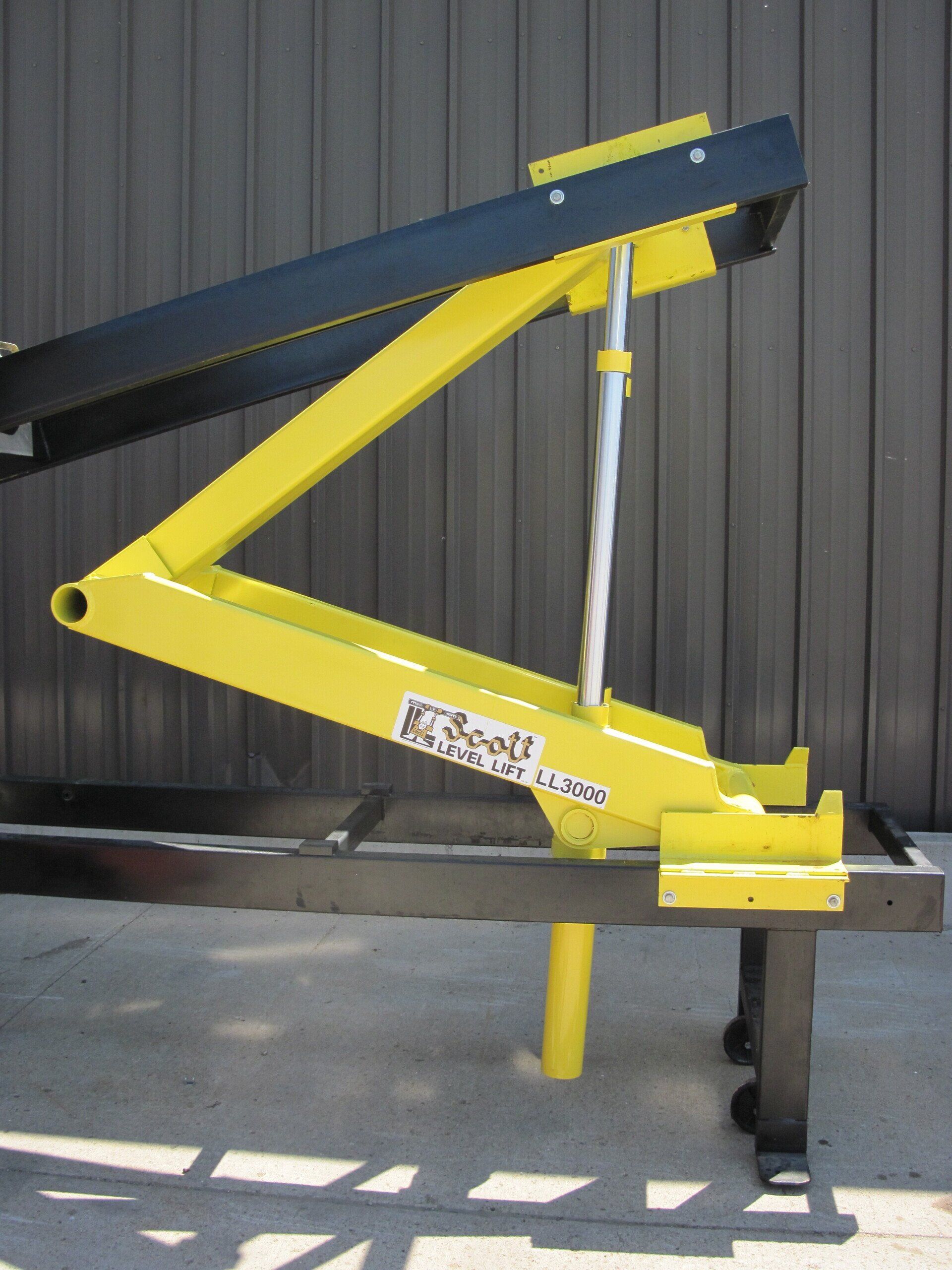

SCOTT Level  Lift LL-3000

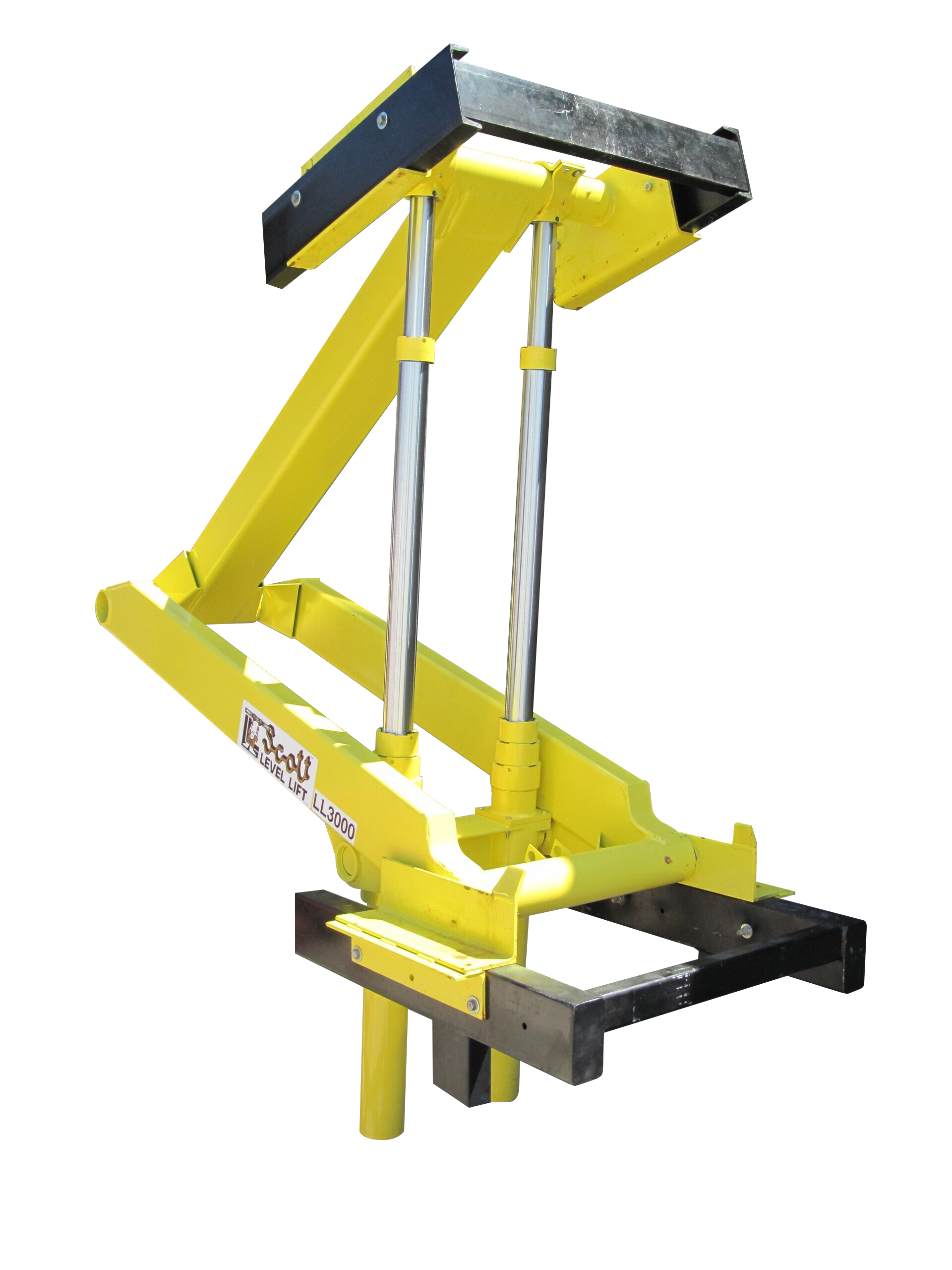

Twin Telescopic Hinge Back

Large Truck Applications - 18'-26' Bodies - Class L

• *10 3/16" Mounting Height (minimum) - Mounts with 11" & Larger Long Sills
• *Pump Set at 3500 PSI (pump options) * Cylinder four moving stages & Chrome Shaft * Stroke 110 3/4"
• *Approximate Weight 1016 lbs. plus 50 quarts of oil

LL-3000 Mounting and Capacity Chart Measured in Tons - 3500 PSI

Note:   (Use hoist calculator to estimate capacity)

>> HOIST CALCULATOR CLICK HERE <<

1. Option for single or double valve operation.
2. Controlled by air or pull cable.
3. Overhang based upon 55" from center line of tail hinge pin to center line of truck trunnion, with 2" clearance between cab and body.
4. Capacities (Tons) are for a water level load including body weight plus payload weight, and assume payload to be centered in body front to back
5. Chart does not cover all mounting conditions. Call Tafco @ 507-526-3247

(* electric pumps decrease capacity by approximately 10 %)
