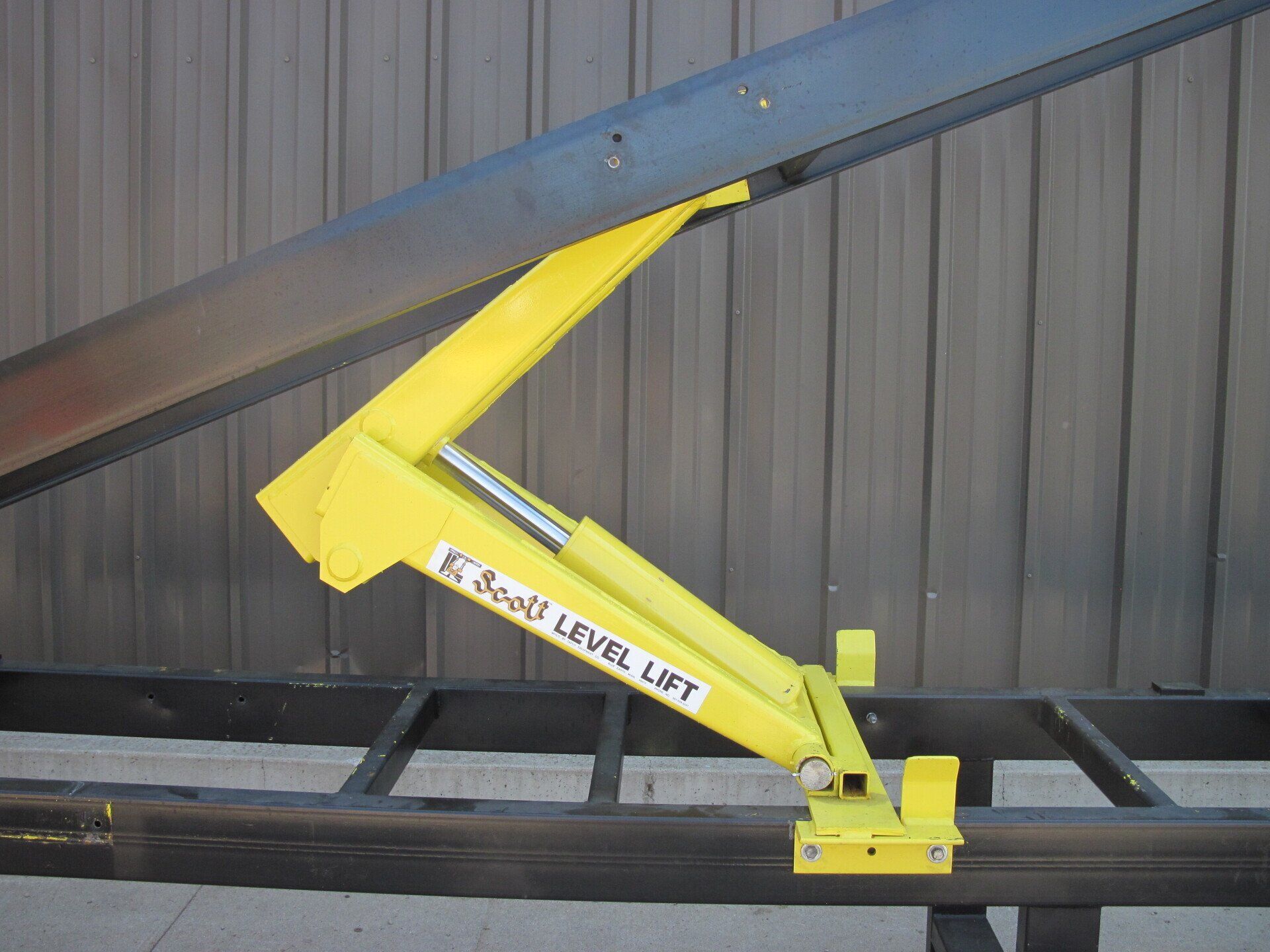

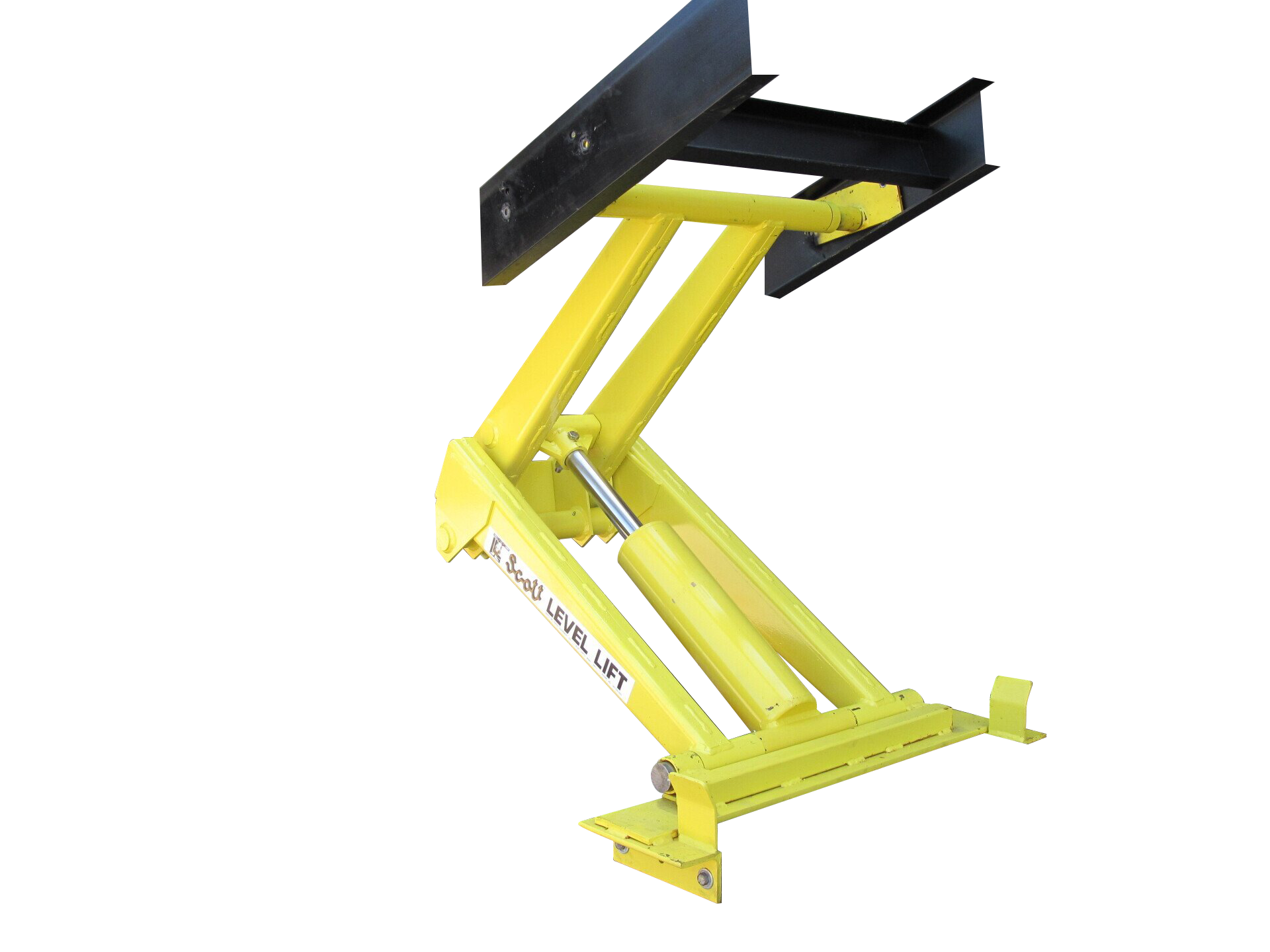

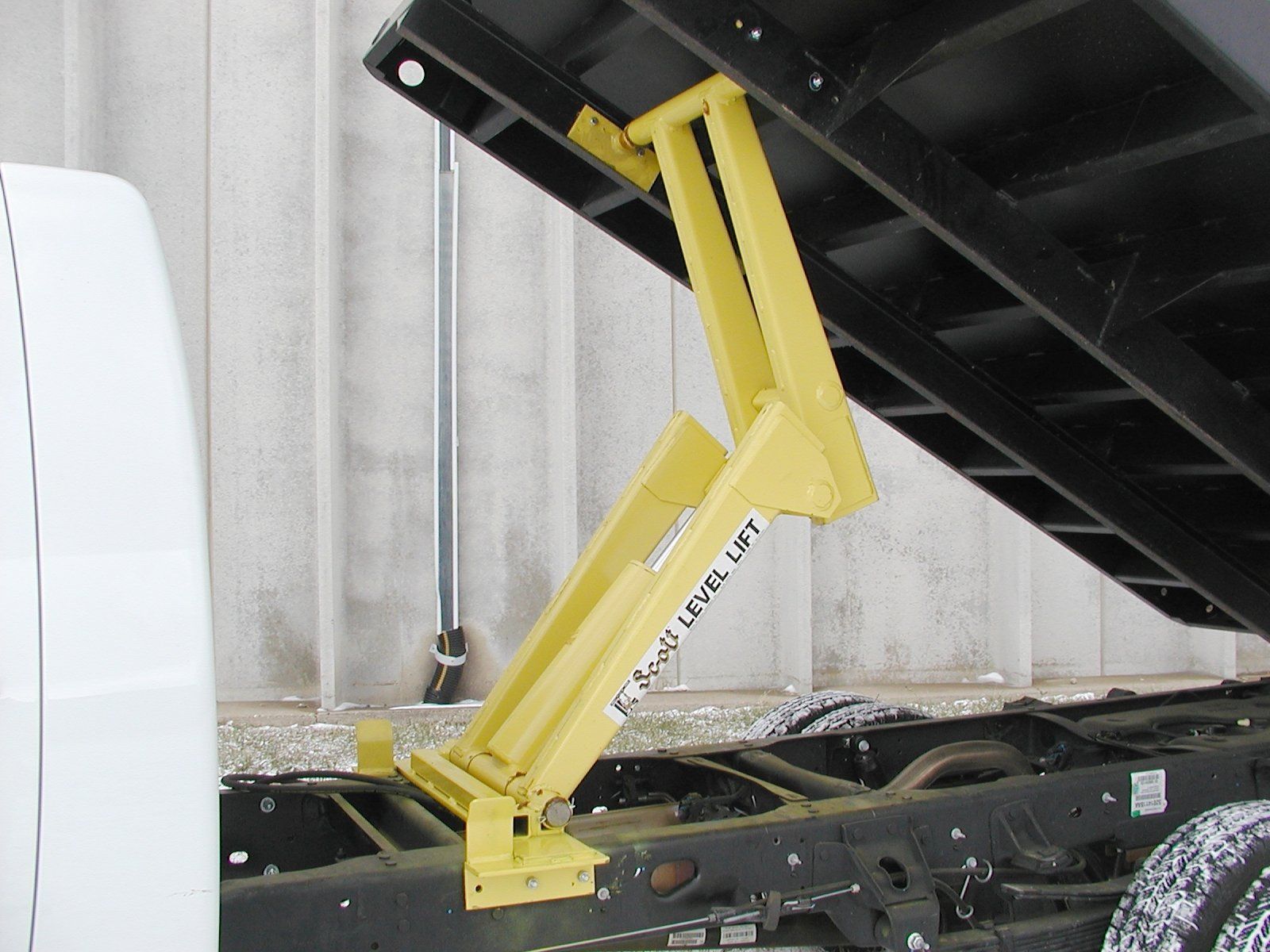

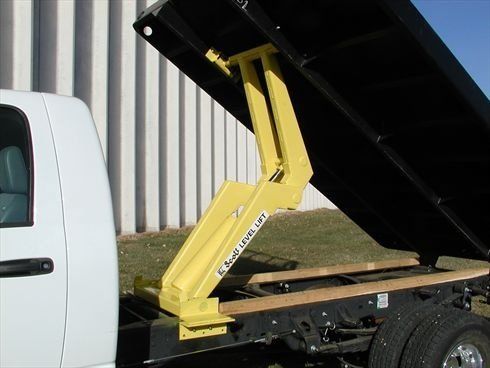

SCOTT Level Lift LL-500 DH

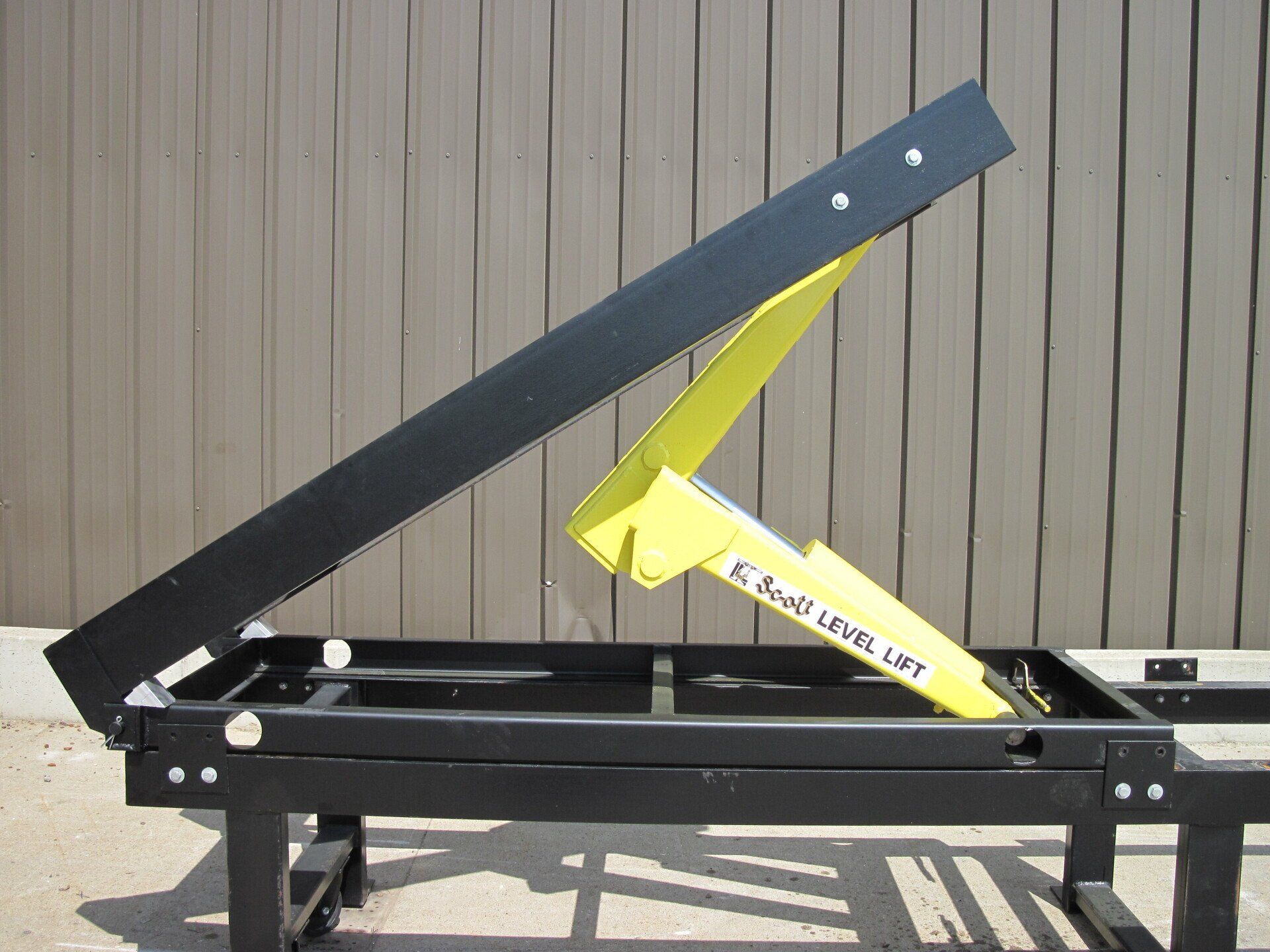

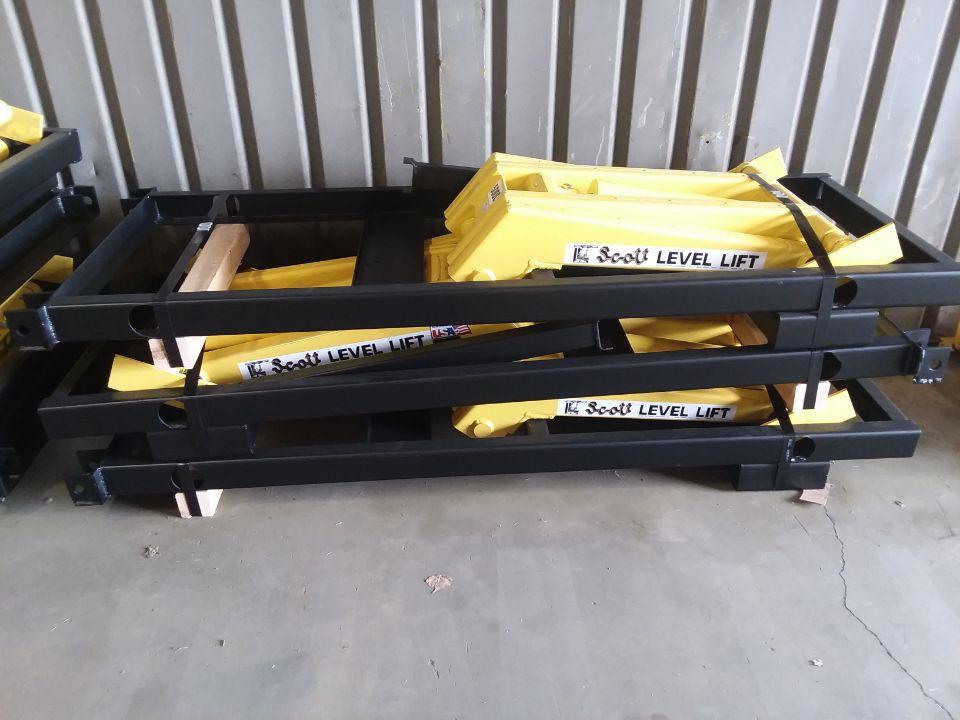

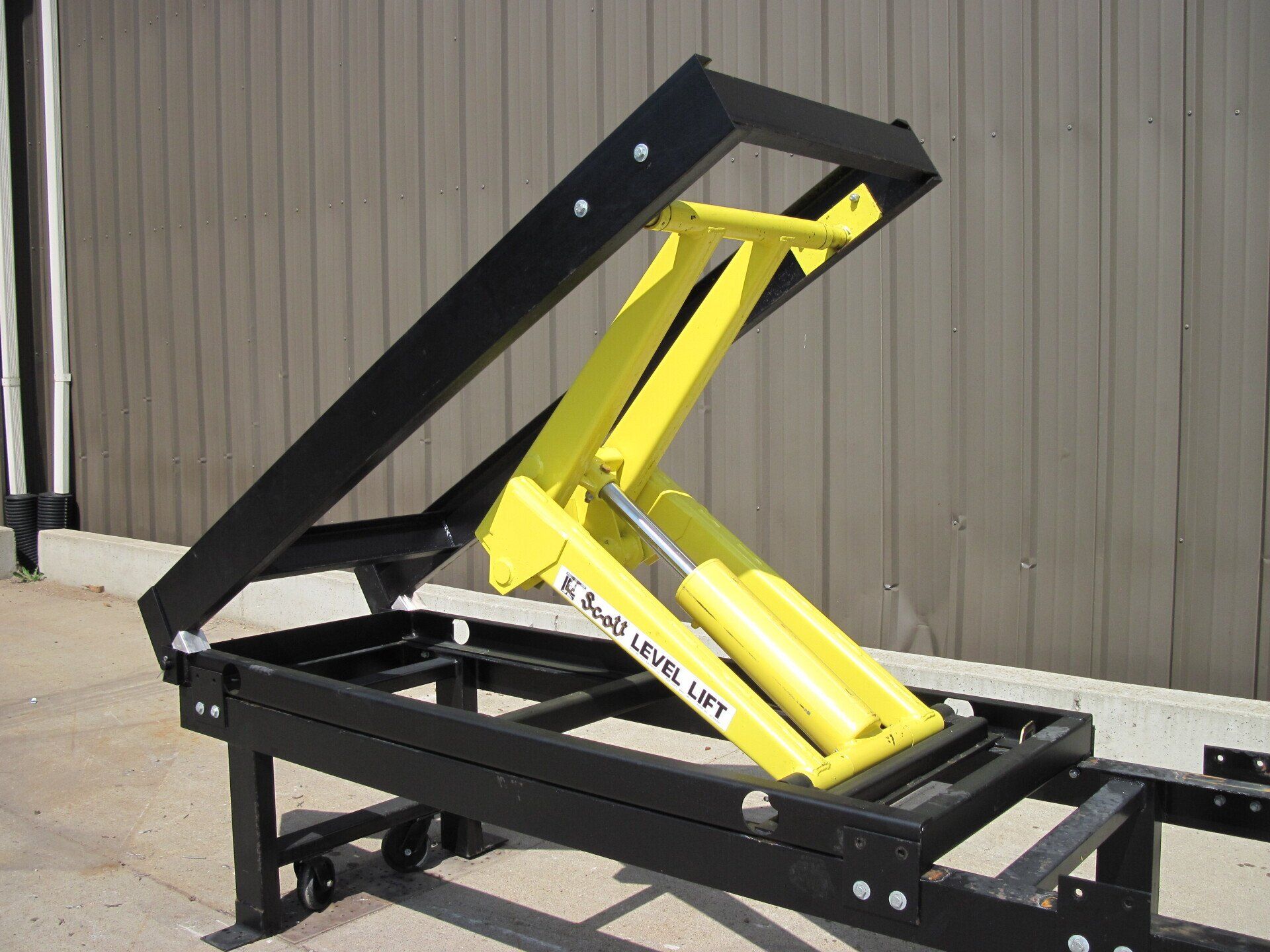

Subframe available

Greater Capacity - 9'-14' Bodies - Class C

• * 6 3/4" Mounting Height (minimum) - Mounts with 5 7/16" & Larger Long Sills
• *Pump Set at 3250 PSI (pump options) * Cylinder 5" & Chrome Shaft * Stroke 16"
• *Approximate Weight 452 lbs.  With subframe *approximate Weight 660 lbs.

LL-500 Lifting Capacity Chart Measured in Tons - 3200 PSI

Note:  (Use hoist calculator to estimate capacity)

>> HOIST CALCULATOR CLICK HERE <<

Overhang based on 47" from center line of tail hinge pin to center line of truck axle, with 2" clearance between cab and body.

Capacities (Tons) are for a water level load including body weight plus payload weight, and assume payload to be centered in body front to back

Chart does not cover all mounting conditions. Call Tafco @ 507-526-3247

LL-500 Not applicable for Chev/GMC 60" chassis due to fuel filler interference.

(* electric pumps decrease capacity by approximately 10%)
