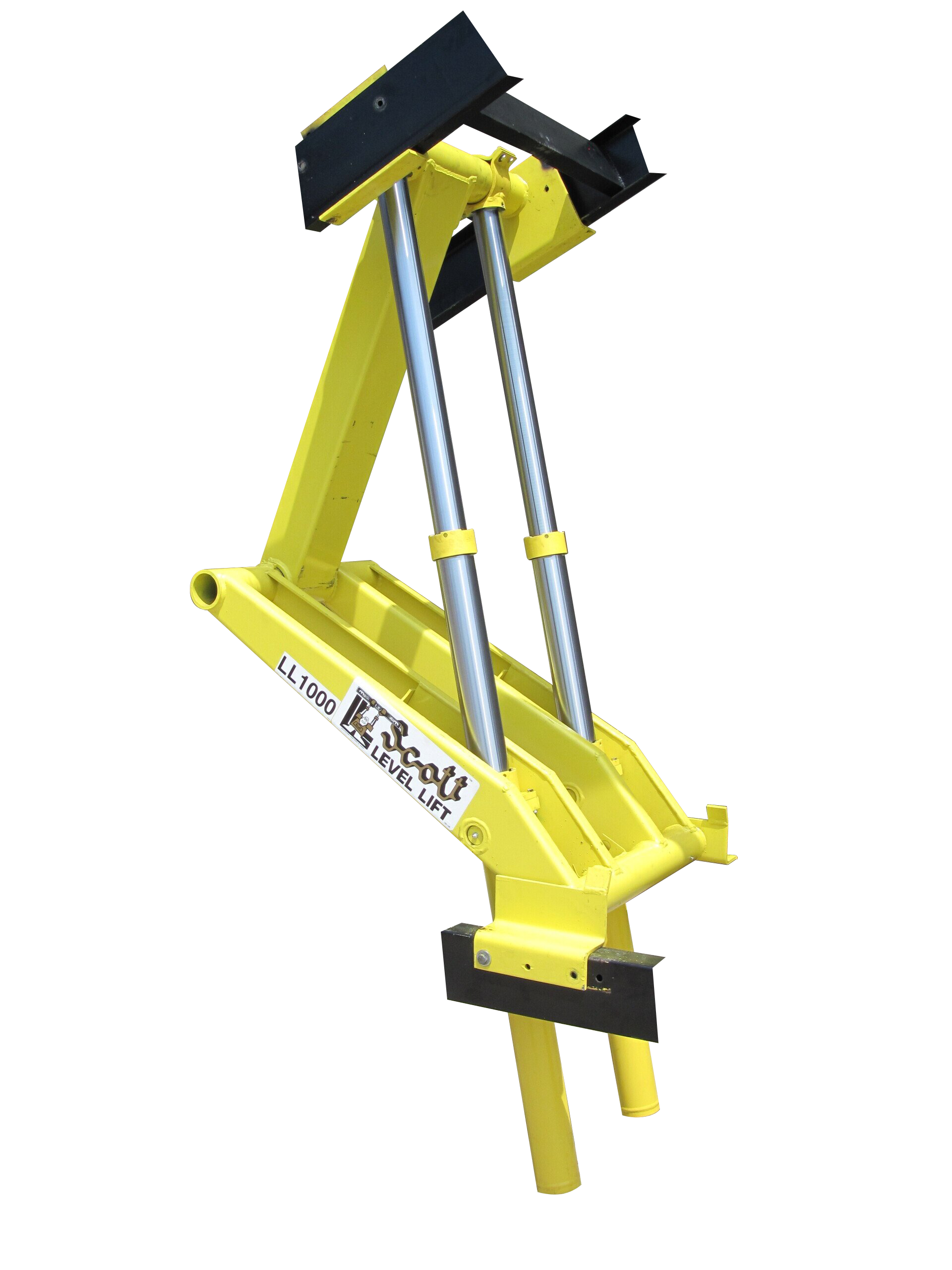

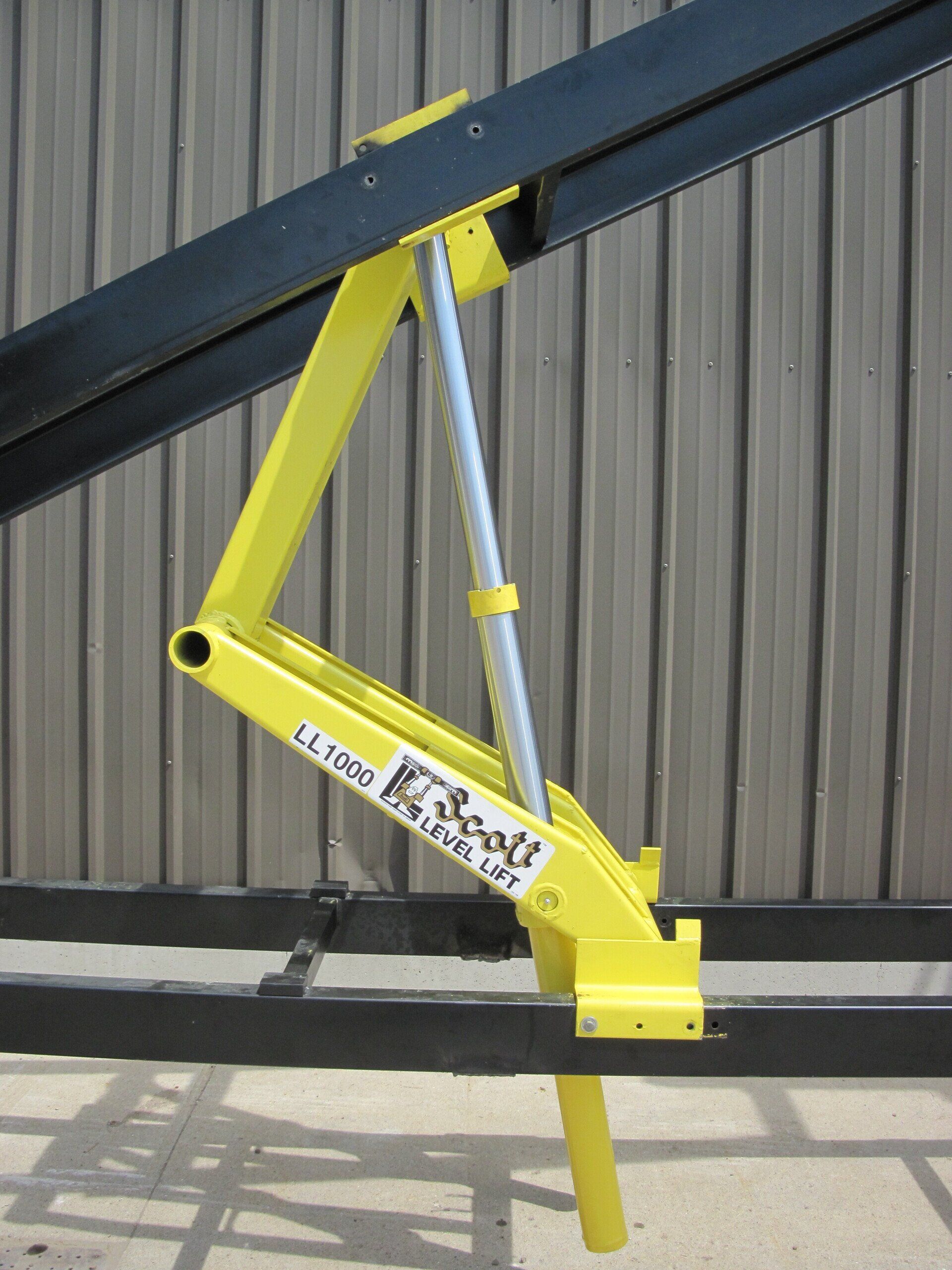

SCOTT Level Lift LL-1000

Twin Telescopic Hinge Back

Large Truck Applications - 14'-18' Bodies - Class G

• *10 7/16" Mounting Height (minimum) - Mounts with 11" & Larger Long Sills
• *Pump Set at 3500 PSI (pump options) * Cylinder two moving stages & Chrome Shaft * Stroke 63 5/16"
• *Approximate Weight 566 lbs. plus 50 quarts of oil

LL-1000 Mounting and Capacity Chart Measured in Tons - 3500 PSI

Note:   (Use hoist calculator to estimate capacity)

>> HOIST CALCULATOR CLICK HERE <<

1. Option for single or double valve operation.
2. Controlled by air or pull cable.
3. Overhang based on 32" from center line of tail hinge pin to center line of truck axle, with 2" clearance between cab and body.
4. Capacities (Tons) are for a water level load including body weight plus payload weight, and assume payload to be centered in body front to back
5. Chart does not cover all mounting conditions. Call Tafco @ 507-526-3247

  (* electric pumps decrease capacity by approximately 10%)
