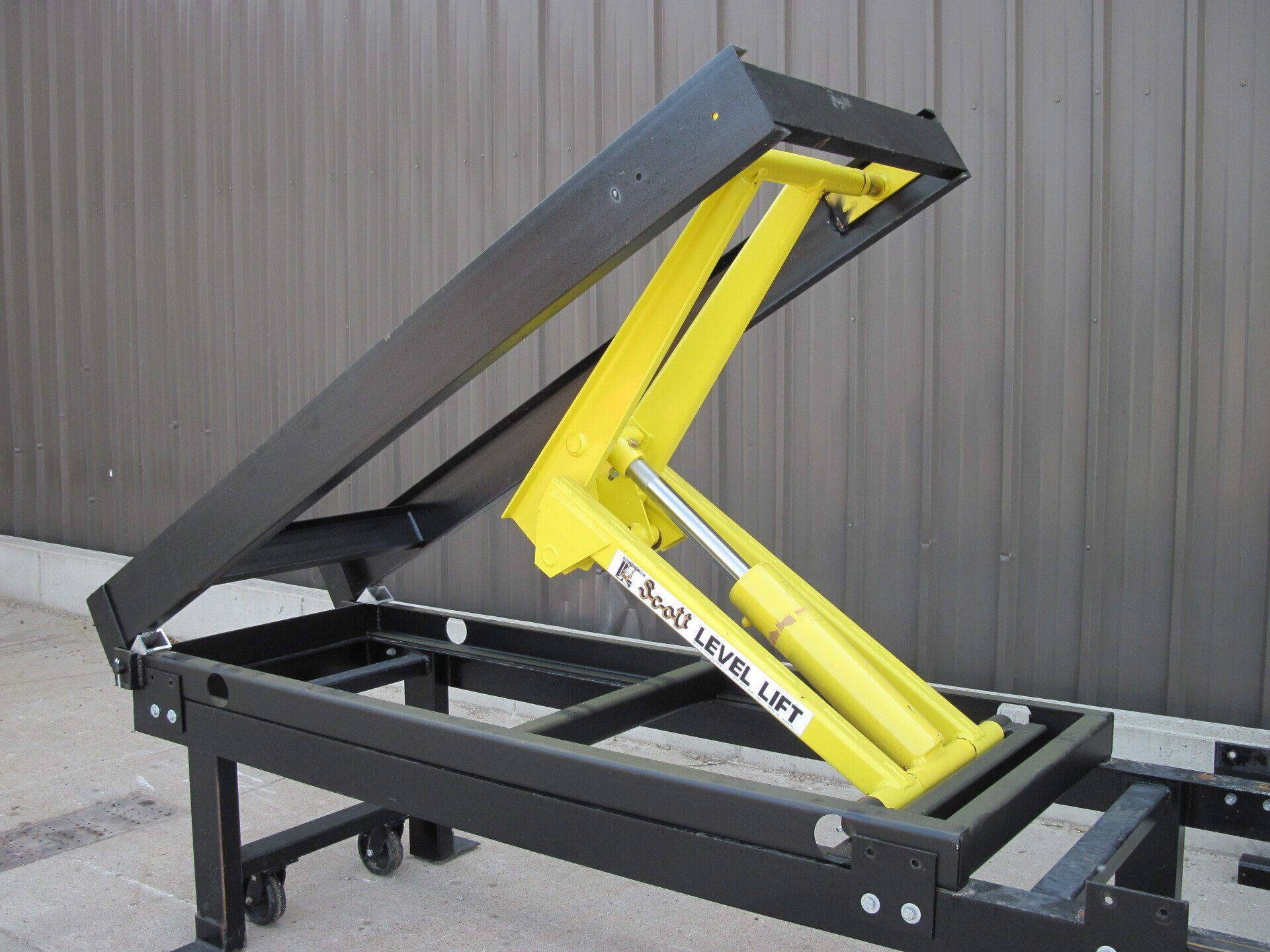

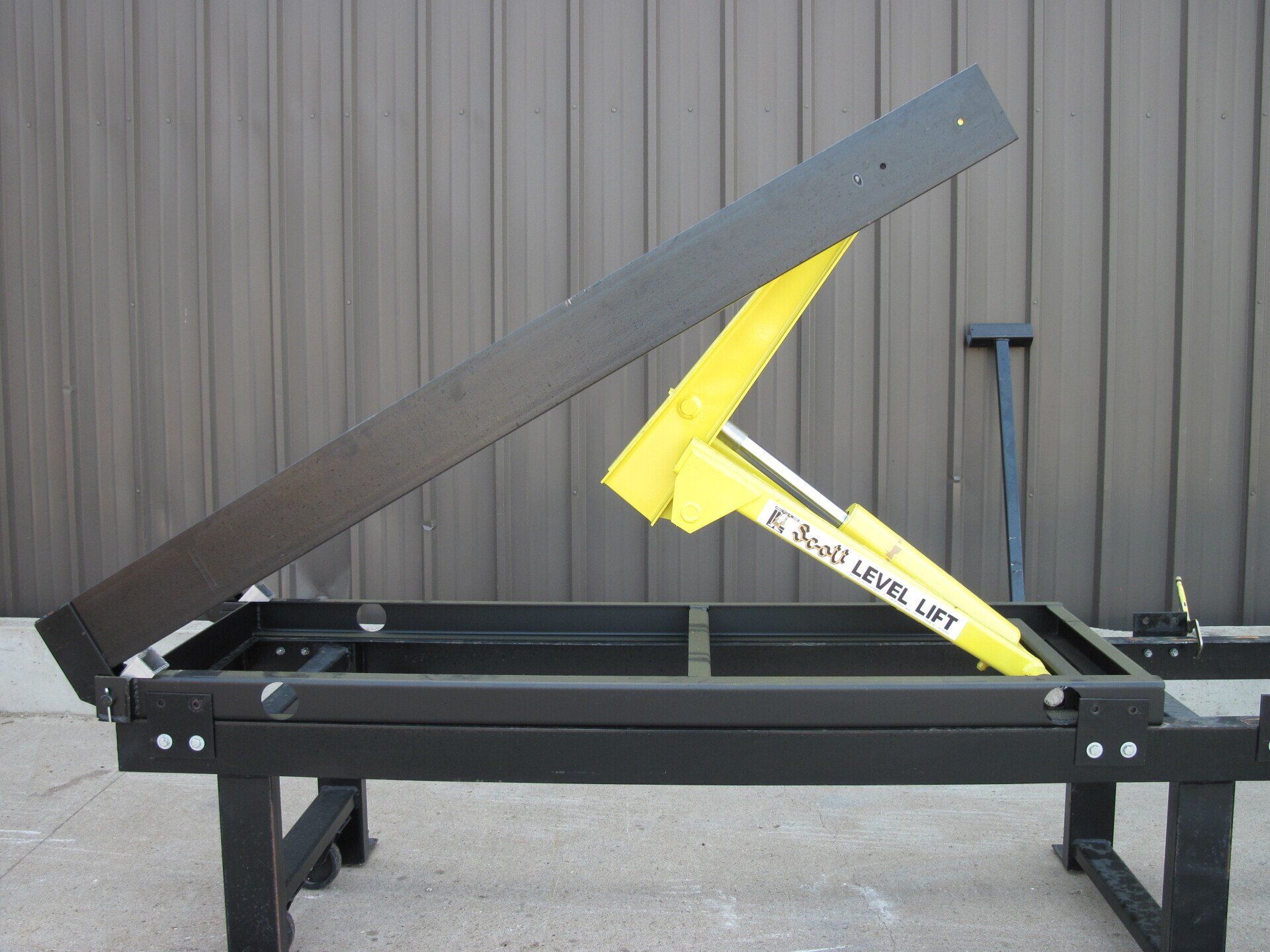

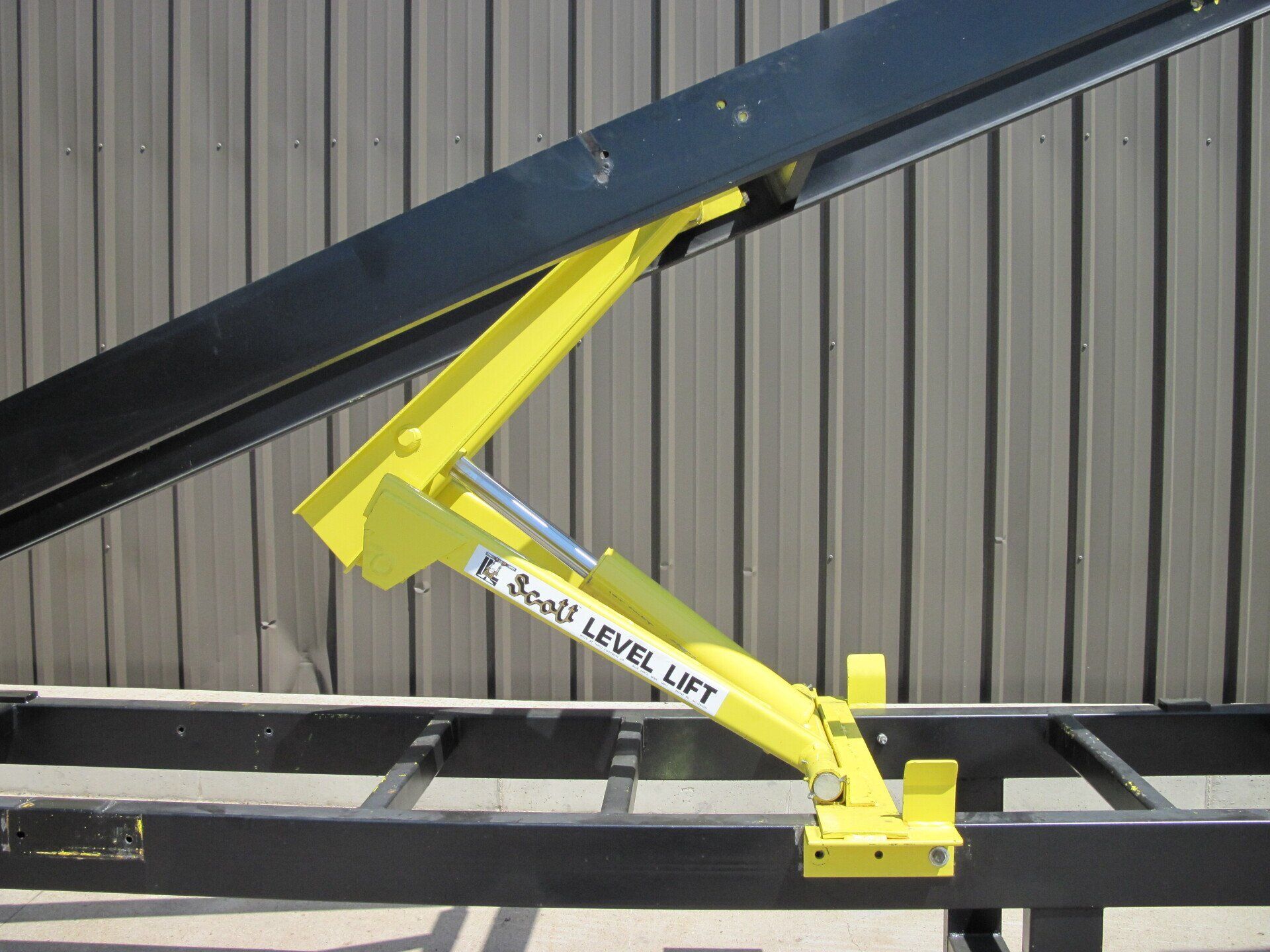

SCOTT Level Lift LL-400 DH

Subframe available

Small Truck Applications - 9'-12' Bodies with Cab-Axles - From 60" to 84" - Class B

• * 6 15/16" Mounting Height (minimum) - Mounts with 7" & Larger Long Sills
• *Pump Set at 3250 PSI (pump options) * Cylinder 4" & Chrome Shaft and a Stroke 16"
• *Approximate Weight 303 lbs. With subframe *approximate Weight 530 lbs.

LL-400 Lifting Capacity Chart Measured in Tons - 3200 PSI

Note: (Use hoist calculator to estimate capacity)

>> HOIST CALCULATOR CLICK HERE <<

Overhang based on 32" from center line of tail hinge pin to center line of truck axle, with 2" clearance between cab and body.

Capacities (Tons) are for a water level load including body weight plus payload weight, and assume payload to be centered in body front to back

Chart does not cover all mounting conditions. Call Tafco @ 507-526-3247

   (* electric pumps decrease capacity by approximately 10%)
