SCOTT Level Lift LL-800 DH

Large Truck Applications  - Class F
Recommened for bodies between 14' and 18'  with cab to axle measures of 84" to 120"

Cylinder 6” bore, 28” stroke, 2 ½” rod

LL800 Mounting height 7 9/16” (requires 8” long sills)

LL800 Approximate weight 915 lbs

Gear pumps are set at 3250 PSI and 6-10 GPM

Electric pumps are set at 3200 PSI and .75 to 3 GPM

Twin motor pumps are set at 3200 PSI and 1.5 to 6 GPM

(electric pumps decrease capacity by approximately 10%)


Note: (Use hoist calculator to estimate capacity)


>>HOIST CALCULATOR CLICK HERE<<

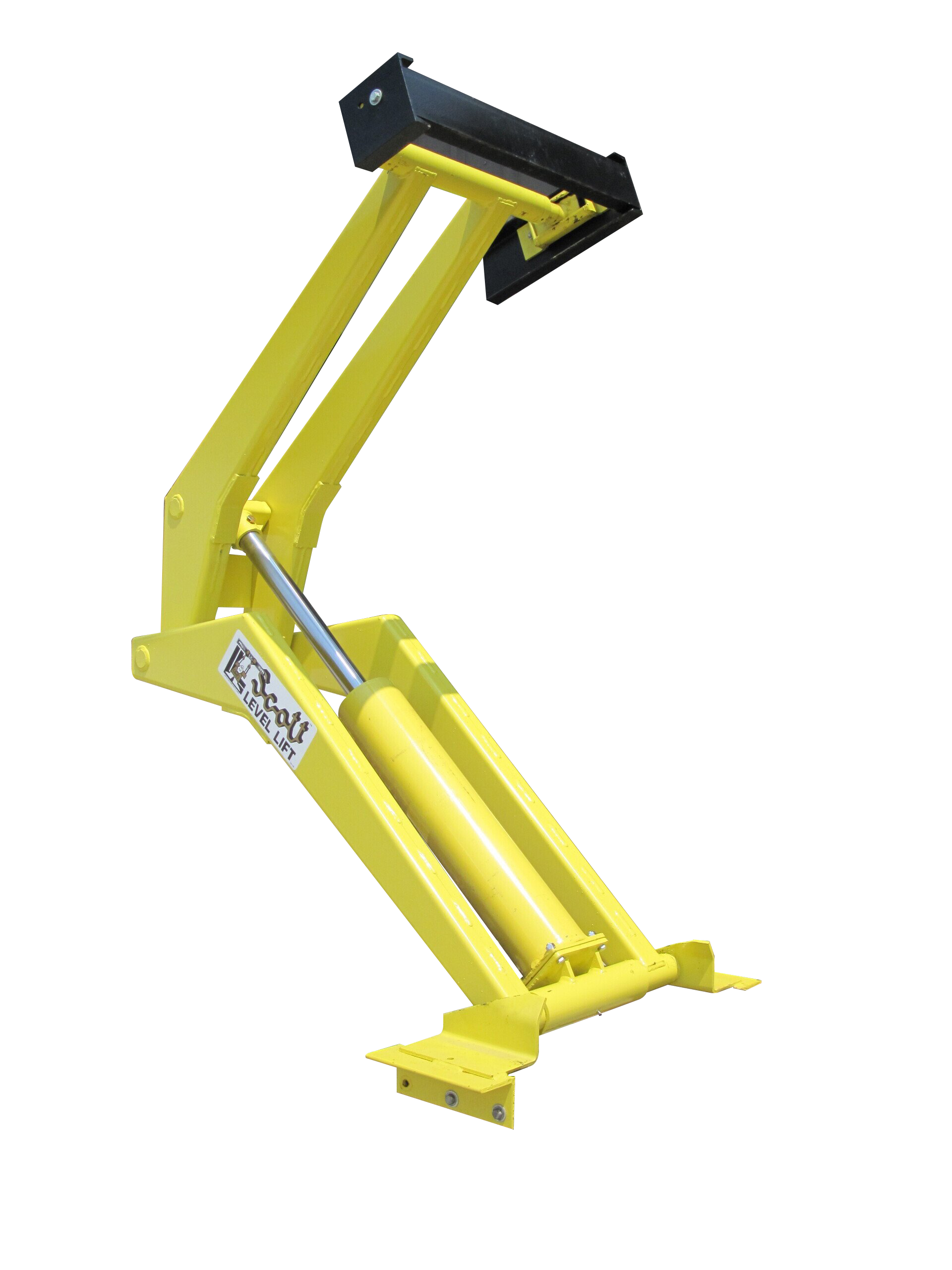

Scott Hoists LL-800 | Truck Lift Hoist | Scissor Lift | Level Lift

* Patented Integral "dual pin interlock" safety feature available on select models.

U.S. Patent No. 12404156

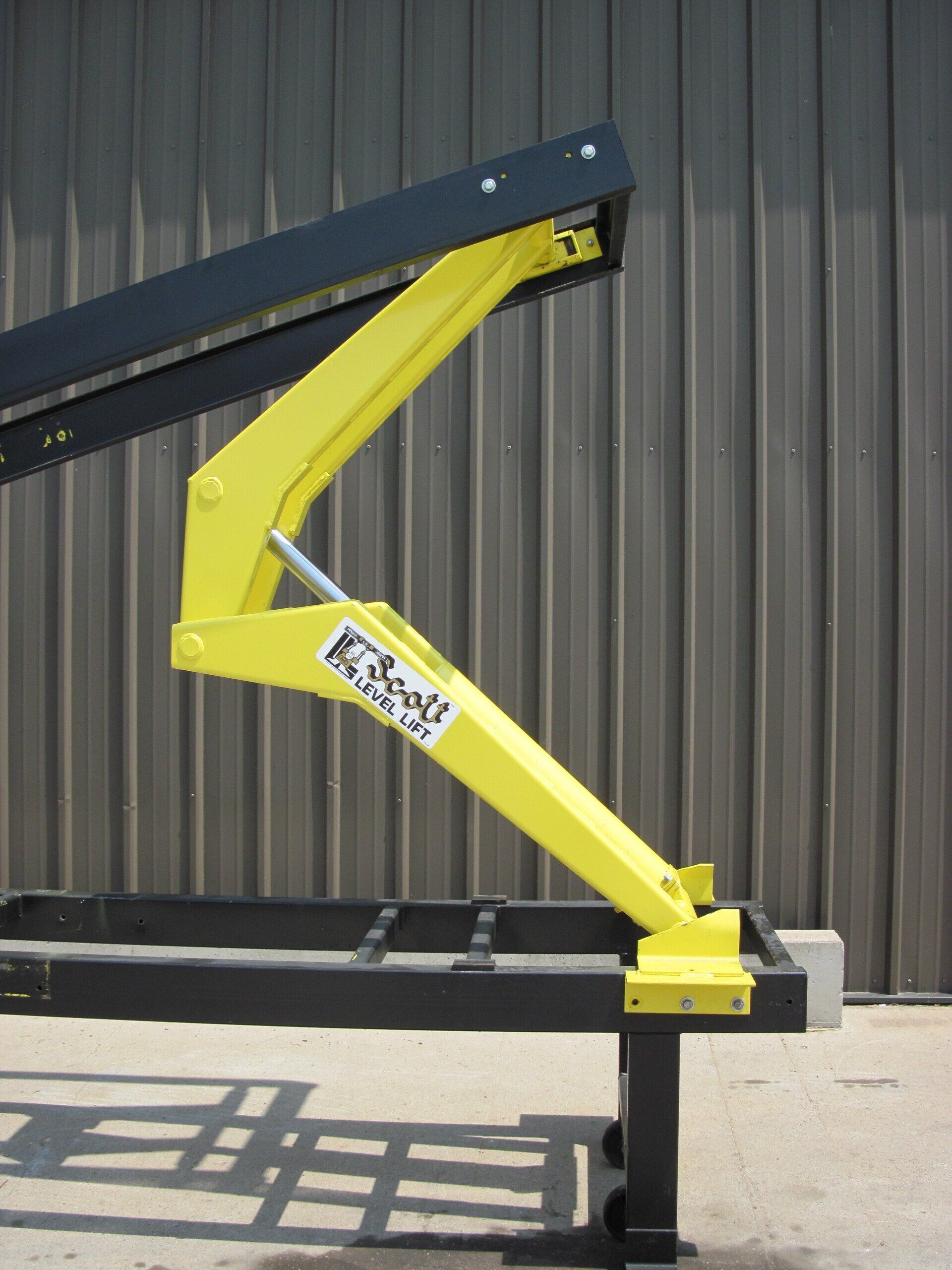

Scott Level Lift LL-800
