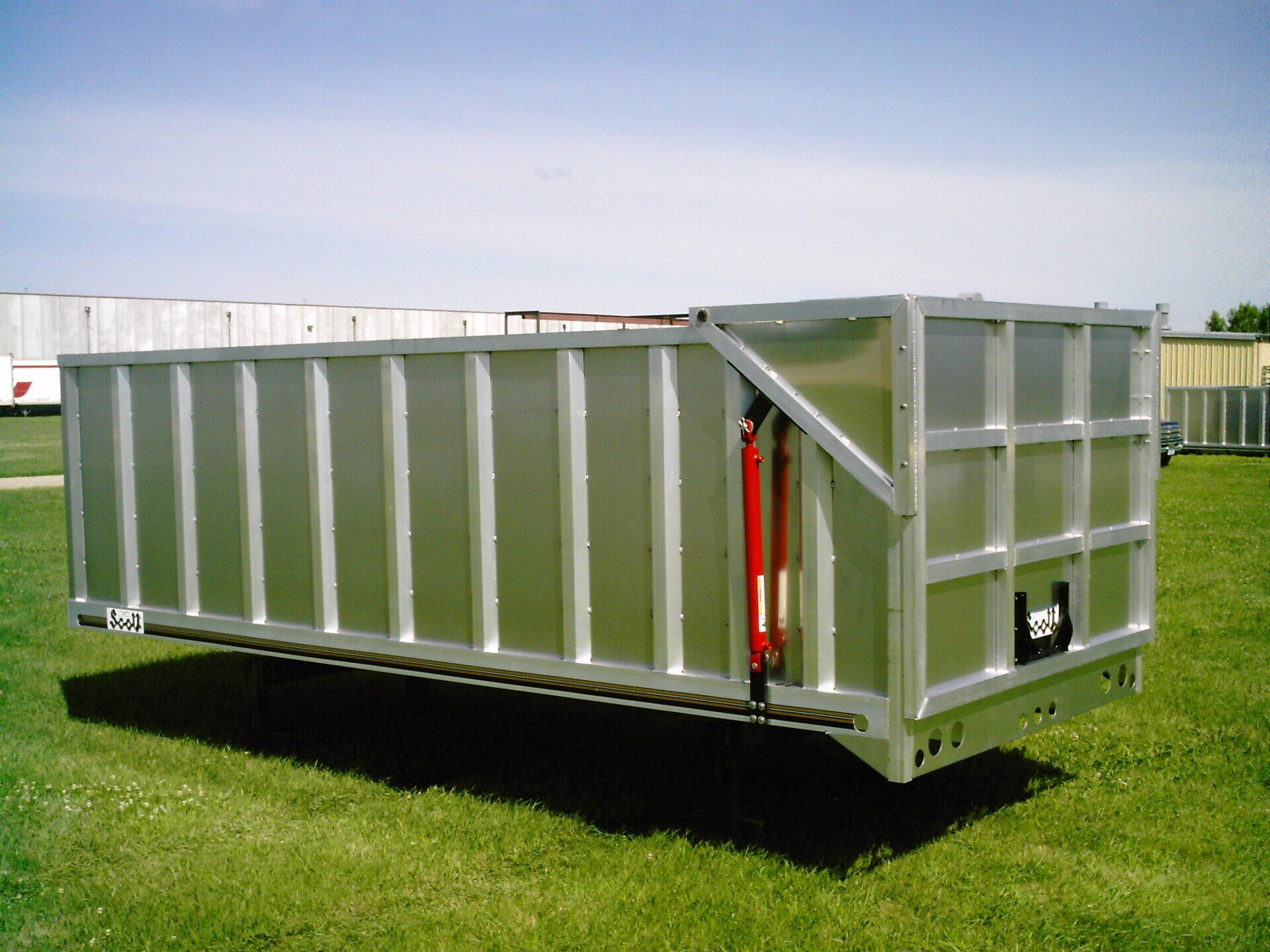

Ensilage/Bulk Material Body:

Stock lengths 14’ – 26’

Widths available: 96” with 62” wall height

4” aluminum channel cross members (96” wide) 16” standard crossmember spacing

14’, 16’ and 18’ lengths with 7” steel channel long sills

20’ – 26’ with 8” steel channel long sills

1 ¼” aluminum extruded floor with 6.85” extruded aluminum front and side rails

.125 smooth aluminum with 2 ½” x 3” x ¼” tube-frame sides and front, smooth interior

Rear extruded corner posts extend through platform for additional strength

Lighting and marking to FMVSS #108 Standards

LED stop, tail, turn, and body marker lights and incandescent back-up lights.

High lift gate and (2) 2 ½” diameter hydraulic lift cylinders with 30” stroke –

Options include hydraulic end gate lock, and additional crossmembers, additional grain traps, and 17” mesh extensions available upon request.

Scott level-lift hoist package
