2 to 8-yard capacity models / ID Model 23, 45, 57 and 68

Inquire about sideless specifications

• Fully welded 10-gauge SCS steel

• 10-gauge floor Model 23 or 45 or 7-gauge floor Model 57 and 68

• Double panel rigid or fold down sides with 6” board pocket extensions

• 11’-14’ split sides without a center post

• Over 14’ split sides with center post (removable center post option)

• 16’ – 20’ with a post (removable post option and works best with air/electric gate)

ID Model 23 or 45 / 2 – 5 Yard Capacity

• Lengths 8’ – 16’ with 13” or 19” sides (boxed top rail) and 19” or 25” tailgate

• Widths available: 88” – 94” – 96” OD / 78” – 84” – 86” ID (custom widths available up to 100”)

• 3” structural channel steel crossmembers - 12" standard cross member spacing

• 6” structural channel steel long sills (5” long sill option *optimal with LL500 – LL600 subframe hoist)

• Crossmemberless options with trapezoidal long sills and 7-gauge floor as standard

ID Model 57 / 5 – 7 Yard Capacity

• Lengths 9’-14’ available with 25” sides, standard with 31” tailgate (36” is available, also “high lift” tailgate is optional)

• Widths available:  96” OD /  86” ID (custom widths available up to 100”)

• 4” structural channel steel crossmembers - 12 standard cross member spacing

• 6” - 7” structural channel steel long sills

• Ask about crossmemberless options

Model 68 / 6 – 8 Yard Capacity

• Lengths 9’ – 14’ with 30” sides (boxed top rail) and 36” tailgate
• Widths available: 96” OD /  86” ID (custom widths available up to 100”)
• 4” structural channel steel crossmembers - 12" standard cross member spacing
• 7” structural channel steel long sills
• Ask about crossmemberless options

All model standard features:

• Straight bulkhead (for tarp mount) with flame-cut window specified to chassis cab
• Standard 18” cab shield

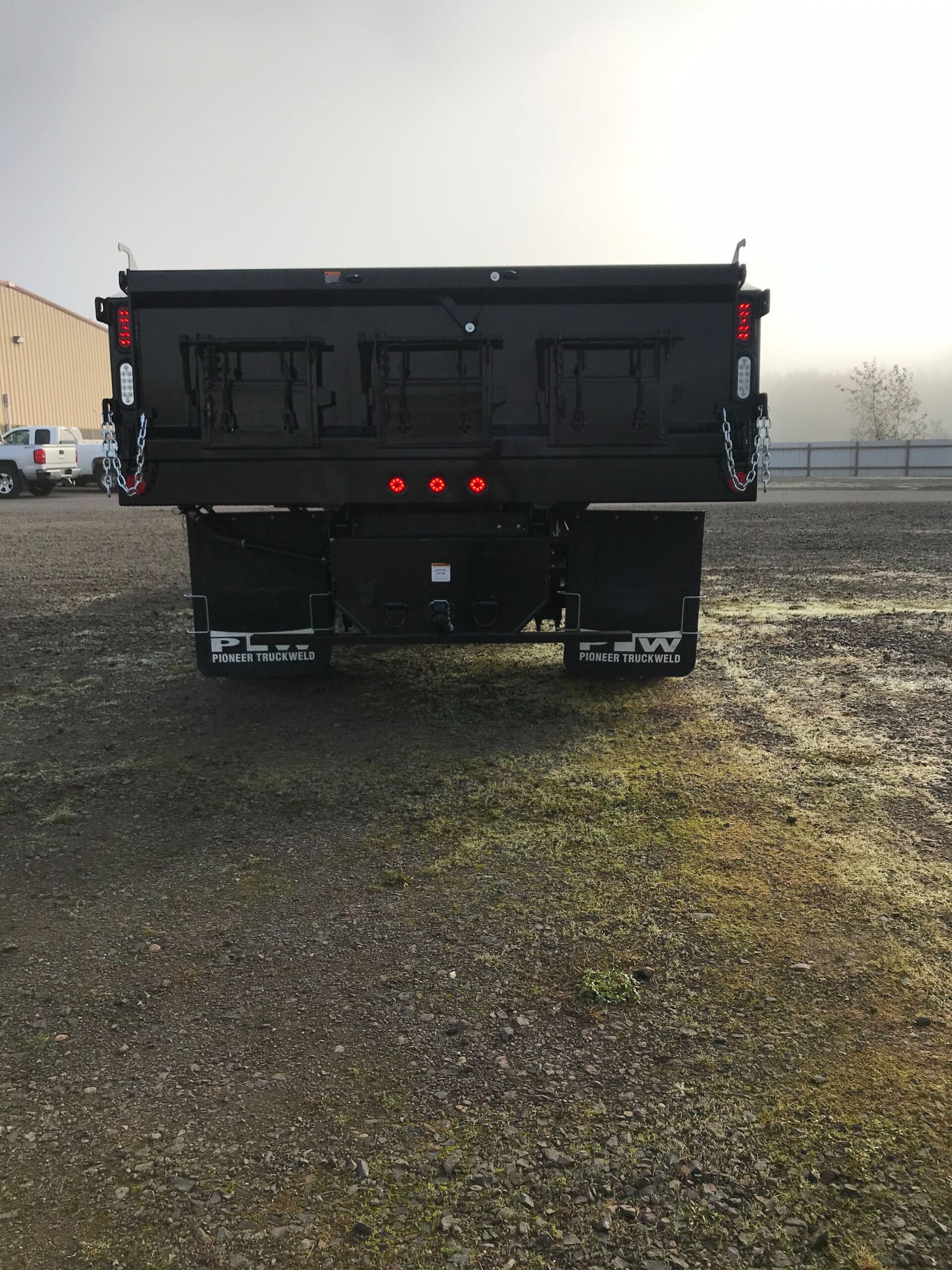

• Double panel, dual acting tailgate with single lever tailgate release (centered standard)
• Forward installed actuator rod, and dual side rods for spread control
• Tailgate folds flat to bed floor
• Dual chain banjo eyes, each side and proof coil chain and chain wrap
• Factory installed D rings in cargo bed (standard)
• Epoxy primed and painted gloss black / rubberized undercoating (standard)
• Lighting and marking to FMVSS #108 Standards
• Oval lights holes in rear post with LED stop, tail, turn, and marker lights, and standard harness

Options

• Scott level-lift hoist package available
• Air or electric tailgate release options for ID 45, 57 and 68
• Custom cab shield sizes available
• Multiple height cab shield
• Center-mount cab shield strobe mount
• Cab shield strobe boxes
• Side stiffeners
• Coal / patch gate
• ¾” LED marker lights in lieu of 2 ½” round
• Taller board pocket extensions
• Shovel holders
• Retractable ladder mounts
• Underbody toolboxes
