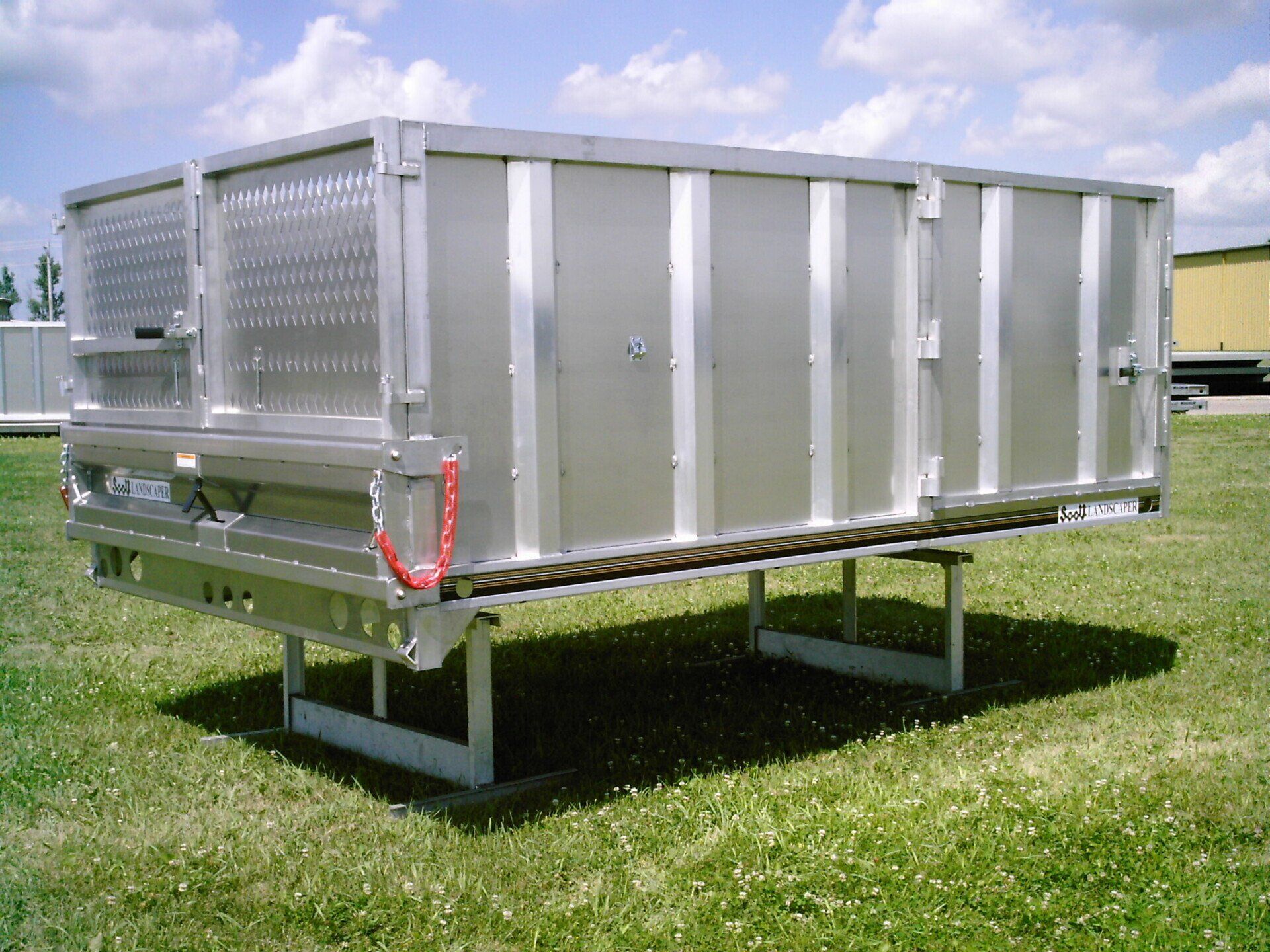

• Stock lengths 9’ - 16’
• 96” wide with 50” wall height
• (9’ – 12’) 3” Aluminum I-beam crossmembers 16” standard crossmember spacing
• (14’ – 16’) 4” Aluminum I beam crossmembers 16” standard crossmember spacing
• (9’ – 12’) 6” aluminum long sills, (Scott-Lite materials)
• (14’ – 16’)7” steel long sills, (Scott Magnum materials)
• .125 smooth aluminum with 2 ½” x 3” x ¼” tube-frame sides and front, smooth interior

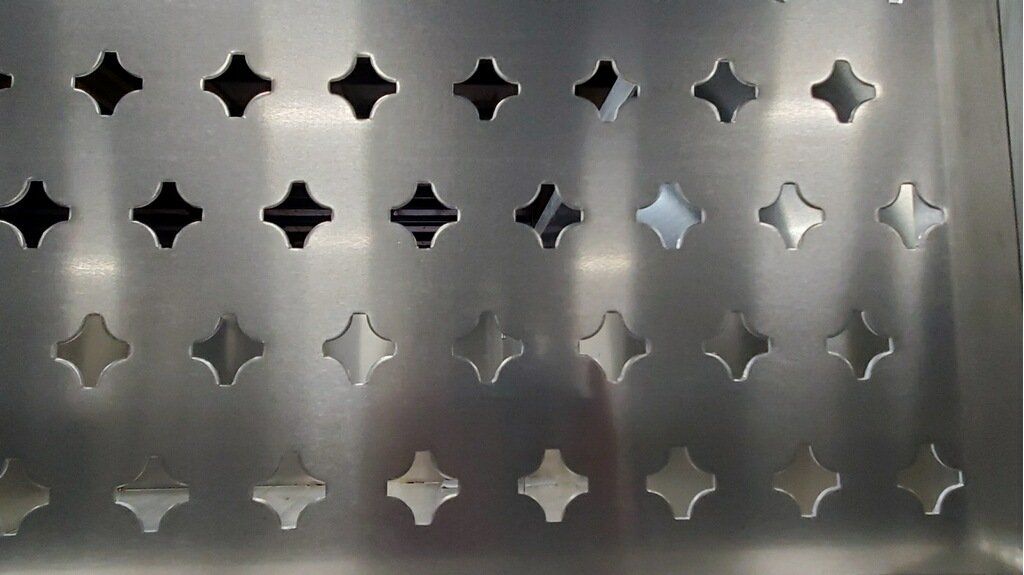

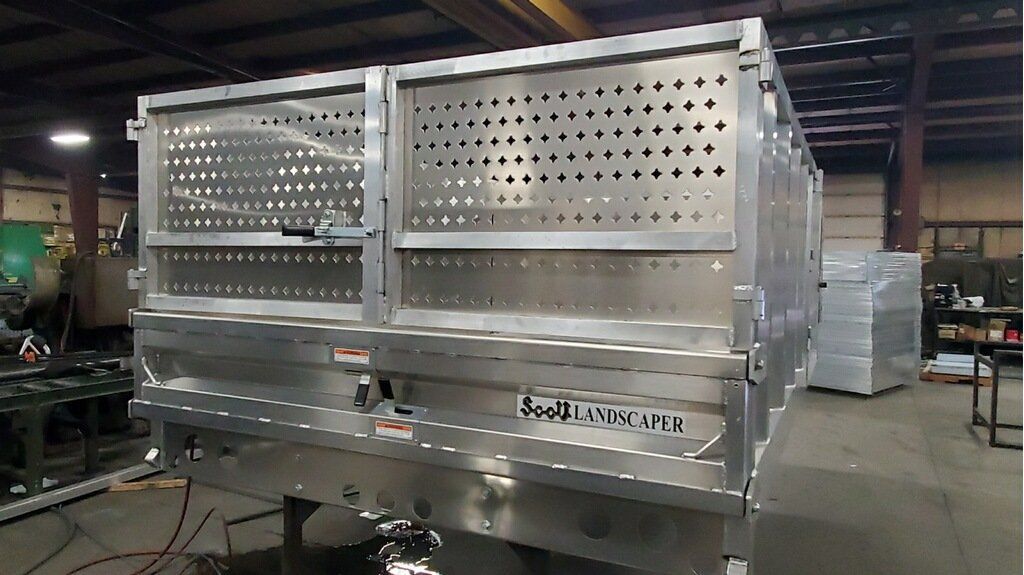

• Two-piece perforated upper rear doors with door tie backs
• 55” wide x 50” high passenger-side access door with door tie back
• 14” double wall (3/16”), dual acting lower gate, spreader, or drop-down tailgate
• Heavy oil lite bronze bushings located at the tailgate pivot points
• Cab trip handle for spreading
• Lighting and marking to FMVSS #108 Standards
• Rear skirt with LED stop, tail, turn, and body marker lights and incandescent back-up lights.

Options:

• Scott level-lift hoist package
• 12” or 42" Cab shield
• Rear full-height solid doors
• Flat roof chipper cover
