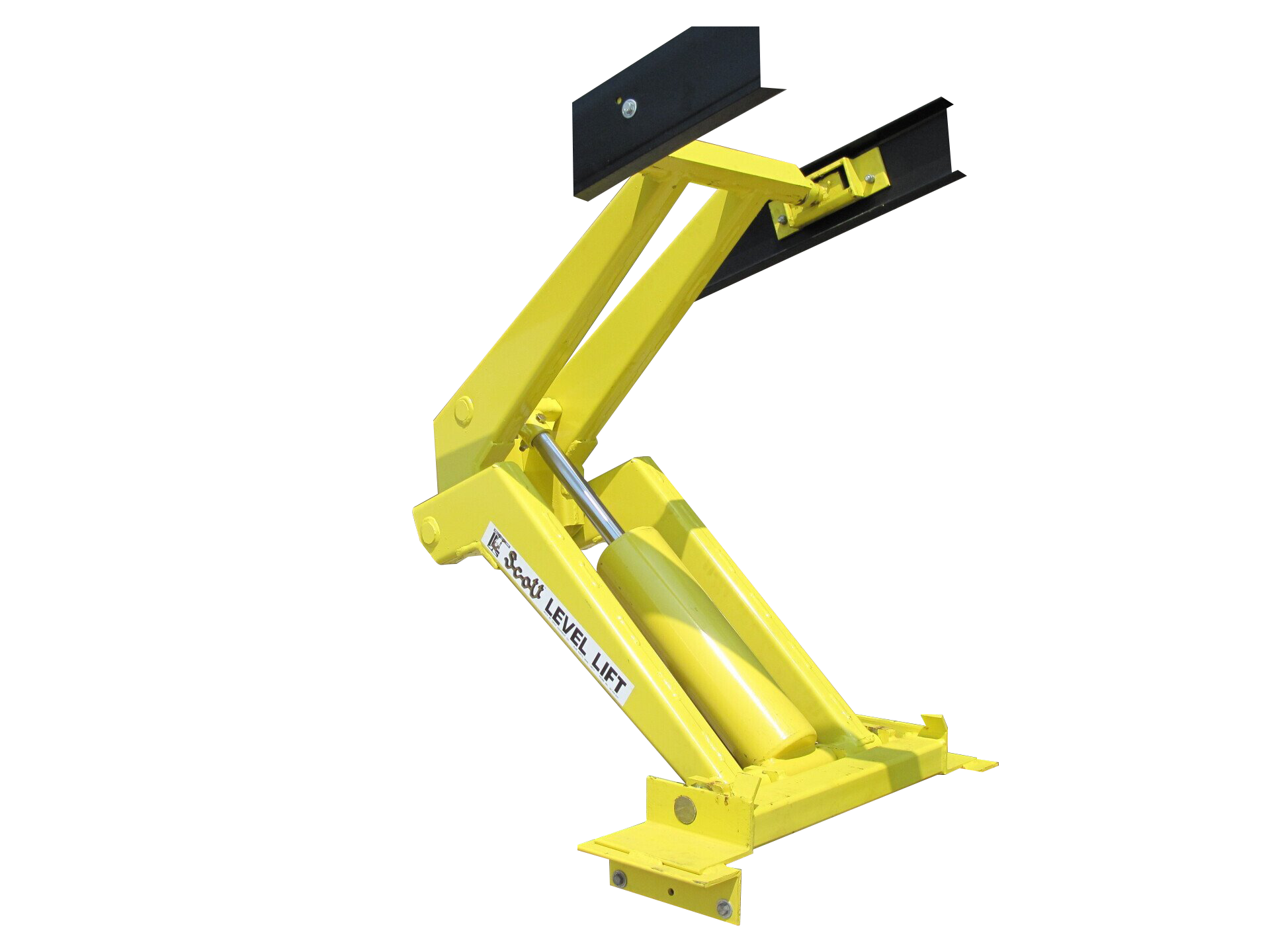

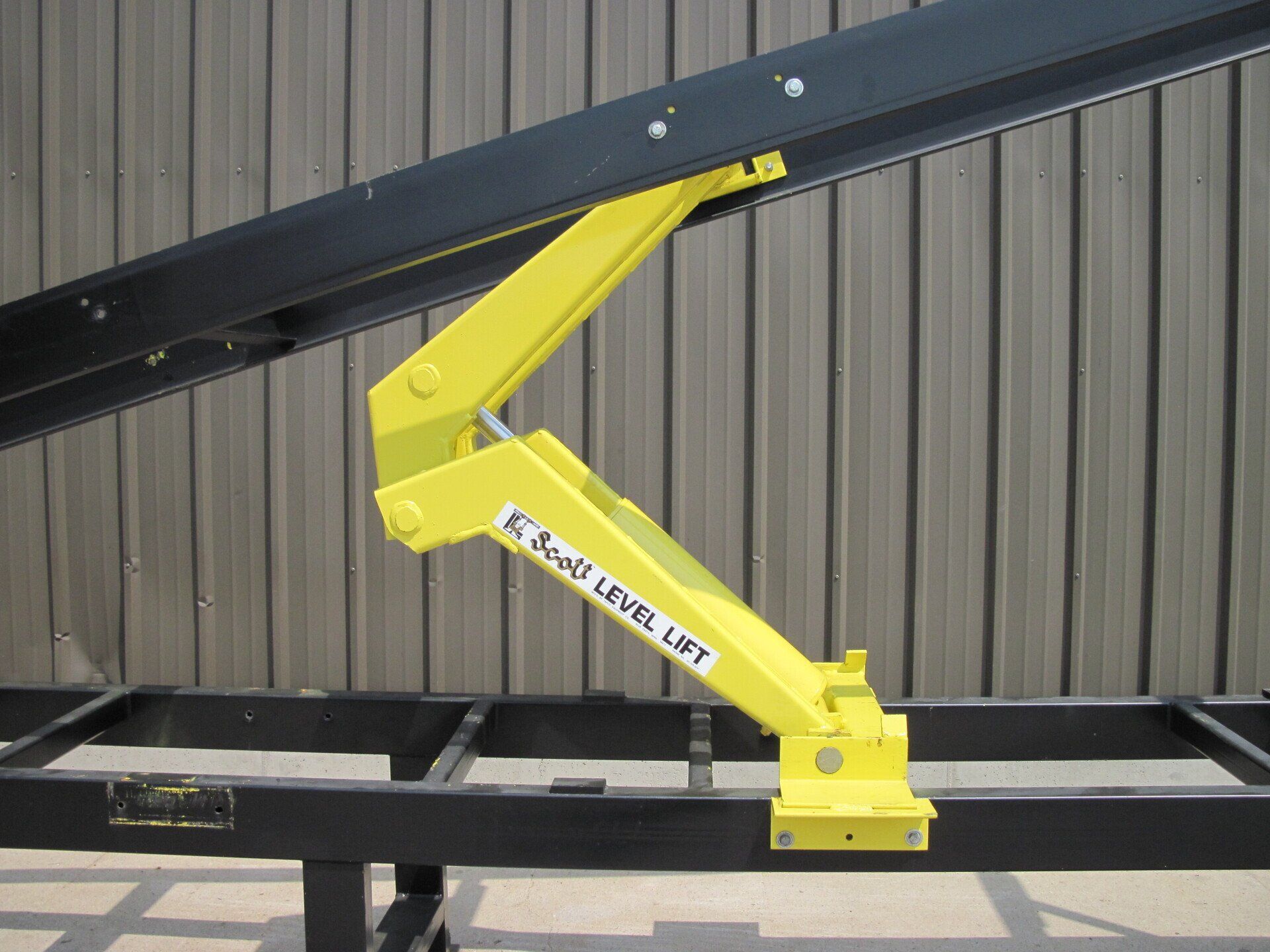

SCOTT Level Lift LL-700 DH

Subframe available

Greater Capacity - 12'-16' Bodies - Class E

• *7 13/16" Mounting Height (minimum) - Mounts with 8" & Larger Long Sills
• *Pump Set at 3250 PSI (pump options) * Cylinder 6" & Chrome Shaft * Stroke 19"
• *Approximate Weight 682 lbs. With subframe *approximate Weight 750 lbs.

LL-700 Lifting Capacity Chart Measured in Tons - 3200 PSI

Note:   (Use hoist calculator to estimate capacity)

>> HOIST CALCULATOR CLICK HERE <<

Overhang based on 32" from center line of tail hinge pin to center line of truck axle, with 2" clearance between cab and body.

Capacities (Tons) are for a water level load including body weight plus payload weight, and assume payload to be centered in body front to back

 Chart does not cover all mounting conditions. Call Tafco @ 507-526-3247

(* electric pumps decrease capacity by approximately 10%)
